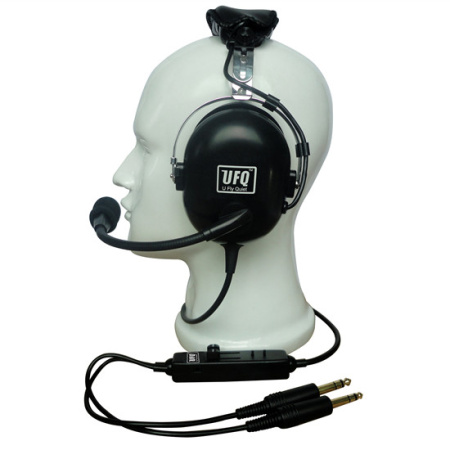

UFQ P2 Twin Plug Aviation Headset
U Fly Quiet UFQ-P2 general aviation headset with Twin Plug PJ Connectors.
Outstanding Features:
- Super light weight only 420g and Super comfortable for long time wear.
- Dual volume controls on the line control, easy to control the volume.
- With Mono/Stereo switch on the line control
- With cellphone and MP3 port on the line contrl
- Link cable for Cellphone or mp3 included.
Overview:
- PNR Aviation Headset
- GA Use Dual plugs
- Molded cord assembly made to exceptional pull and flex standards
- Noise-canceling microphone
- Strong steel Boom provides flexibility and steady microphone placement
- Straight cord from headset to molded plug, 150CM
- Color: Black,
- Noise Reduction Ratings (NRR):24dB
- Specifications
- Headphone
- Type: Dynamic (F40)
- Frequency Response:100Hz to 8 kHz
- Sensitivity:95+/-5 dB SPL
- (1 kHz, 1 mW input per earcup side)
- full volume on ear simulator
- Impedance:150 ohms (300 ohms each; wired in parallel)
- Rate Input:100mW
- Max. Input: 250mW
- Microphone and Amplifier:
- Element Type: Noise-canceling
- Frequency Response:100Hz to 5 kHz
- Operating Voltage (supplied by aircraft ):8-32 Volts DC
- Matching Impedance: 150-1000 ohms
- Sensitivity:-33+/-4 dB
- (ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load)
- General
- Operating Temperature: -20 to 70°C
- Cordage: Straight cord from headset to molded plug, 150CM
- Intercom Connections Plug:
- Earphone Plug: PJ-055( .25"F6.3 phone plug)
- Microphone Plug:PJ-068( .206"F5.2 phone plug)
- Golden plated connectors
- Headset size range Height: 10 to 14 cm
- Color: Black
- Boom: flexible boom
