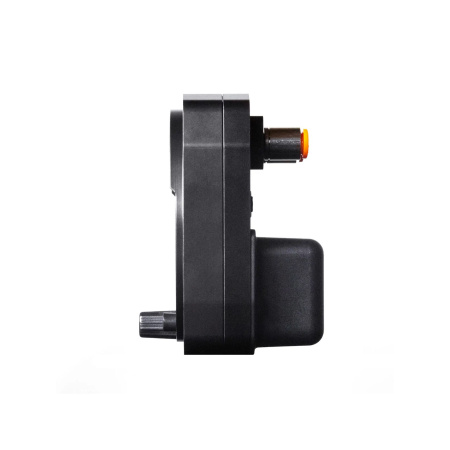

uAvionix AV-30-C (Experimental) - EFIS

SKU: 1982
Category: Avionics
Manufacturers:

1.890,98 €

incl. 8,1% VAT ,

receive with purchase 1790 Bonuspoints

Must be ordered. Ready for shipment in 14 days after order.
Delivery time: ca. 3 weeks (CH - int. shipments may differ)

Upgrade your legacy vacuum driven instruments to digital precision attitude and directional gyro customizable displays. The uAvionix AV-30 fits in your existing 3" panel slot seamlessly. By mounting from behind, it preserves the "round dial" look, and eliminates the need for cutting or replacing your panel.

The uAvionix AV-30C features 14-in-1 functionality and customizable display:

Primary Attitude
Primary Slip
Primary Direction Indication
Probeless Angle Of Attack
Indicated Airspeed (KTS/MPH)
Altitude / Vertical Trend / Alerter
+8 / -8 G-Meter
OAT / TAS / Density Altitude
Bus Voltage
GPS Navigational Data Overlay
GPS HSI / 360 Rose / Arc Map Mode
Customizable Colors, Fonts, and Layout
Audio Alerts (AoA, G, Roll Limits)
2 Hrs Typical Internal Battery Operation
When paired with AV-Link WiFi Module - live ADS-B Traffic from a Supported Receiver and Wireless Software Updates

Technical Specifications uAvionix AV-30C:

Diagonal Display Size: 3" Circular
Display Contrast Ratio (Typical): 500
Display Brightness (Typical): 1000 cd/m2
Display Viewing Angle Left/Right: 60°
Display Viewing Angle Up/Down: 45°/10°
Display Backlight Lifetime (Typical): 50,000 Hrs
Input Voltage Nominal: +10 to +32 VDC
Input Voltage Max: +60 VDC
Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
Required Circuit Breaker: 2 Amp
Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C

Physical Attributes:

Mounting Configuration: 3 1/8” Round Instrument Hole
Dimensions withoot Connector: 3.38 x 3.38 x 1.6 Inches
Weight: 0.50 Lbs.
Electrical Connector: 15 Pin Male D-Sub
Pneumatic Connectors: 1/4" OD Quick Connect
Mounting: (4X) #6-32 Machine Screws
Case Material: Billet Aluminum
Operating Temp.: -20°C to +55°C
Storage Temp. (48 Hrs): -30°C to +80°C
Humidity (48 Hrs): 90% RH

Delivery includes:

uAvionix AV-30C (Experimental) unit, installation kit, operating software.

Item weight:	0,27 kg
